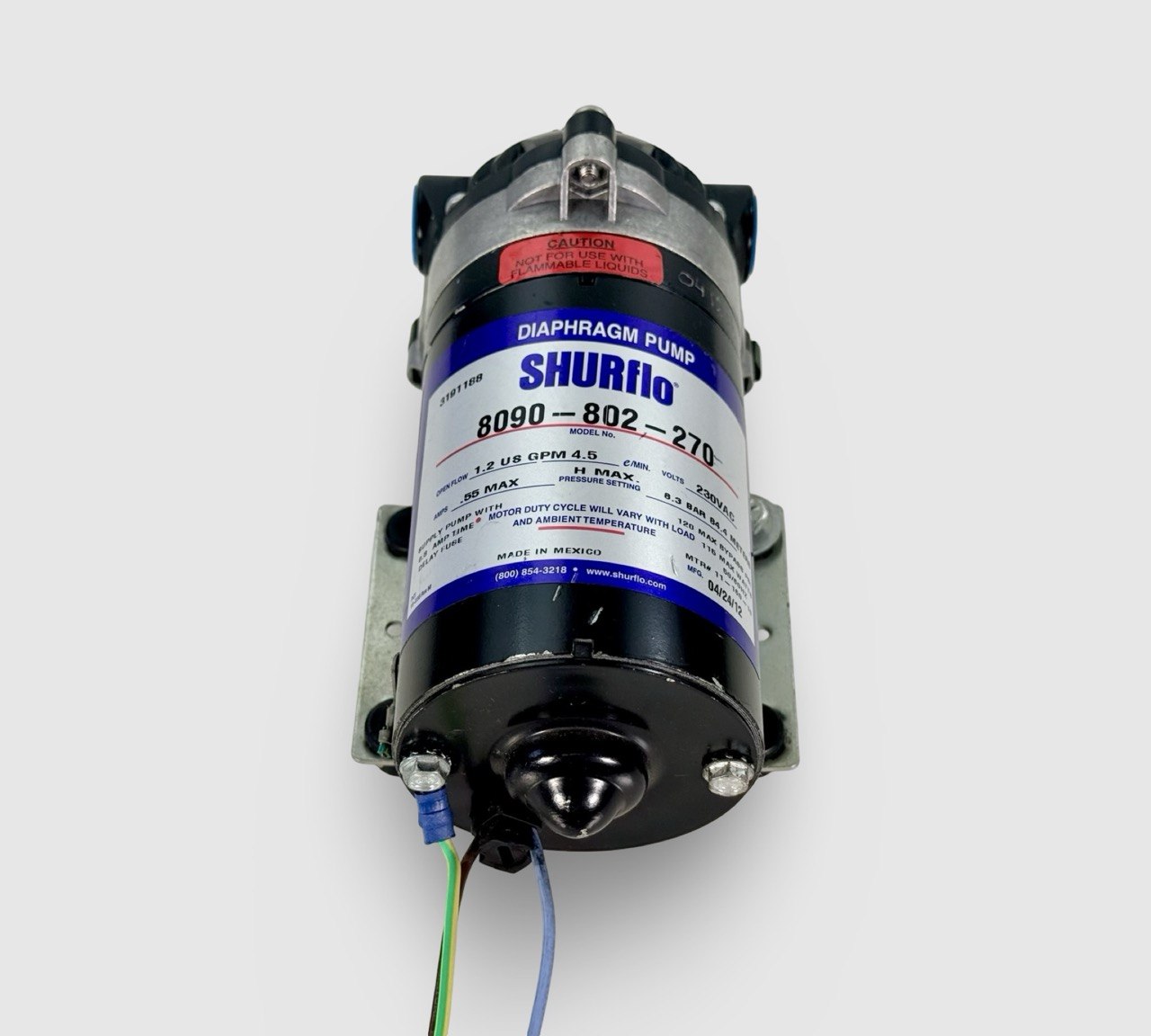

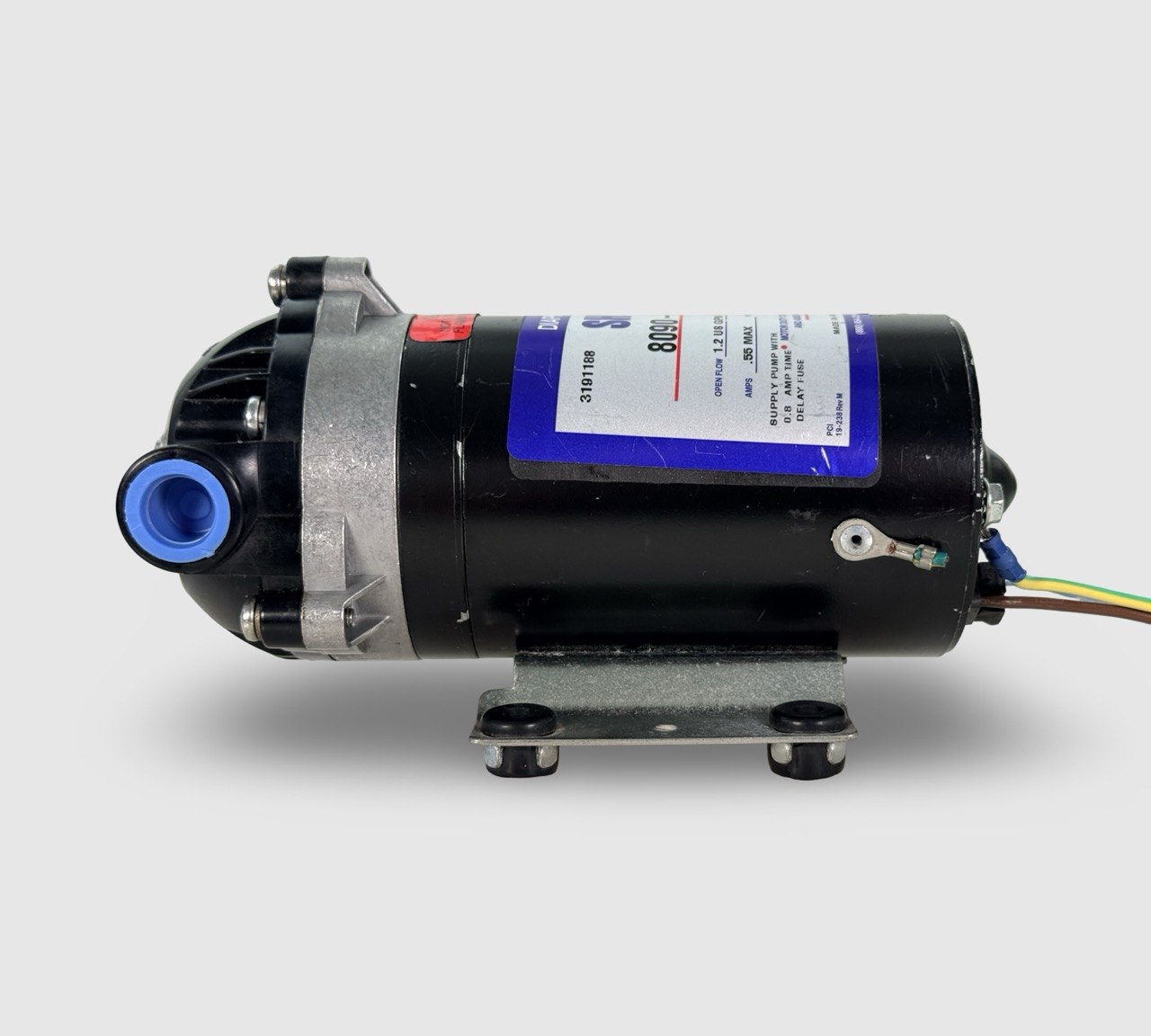

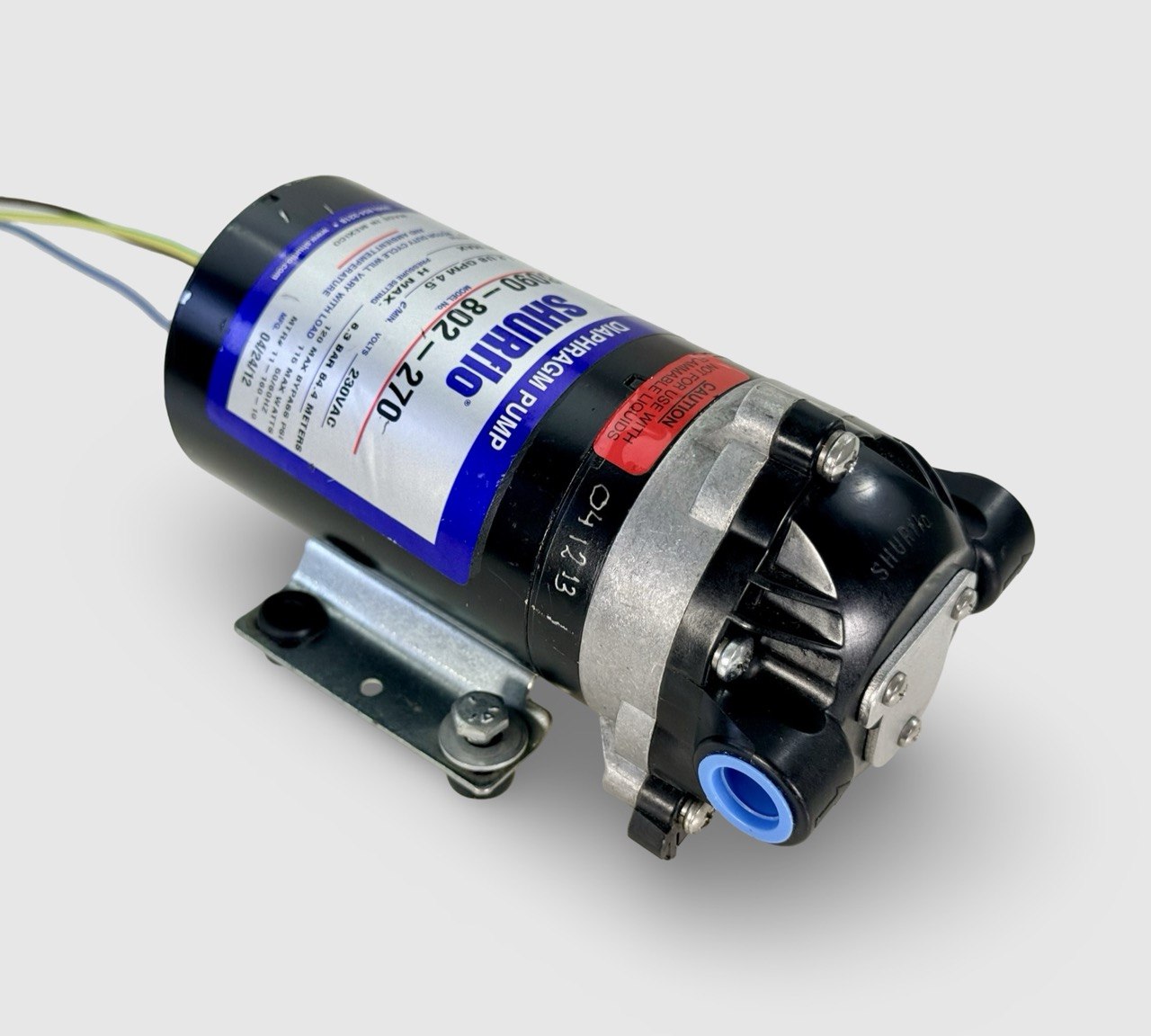

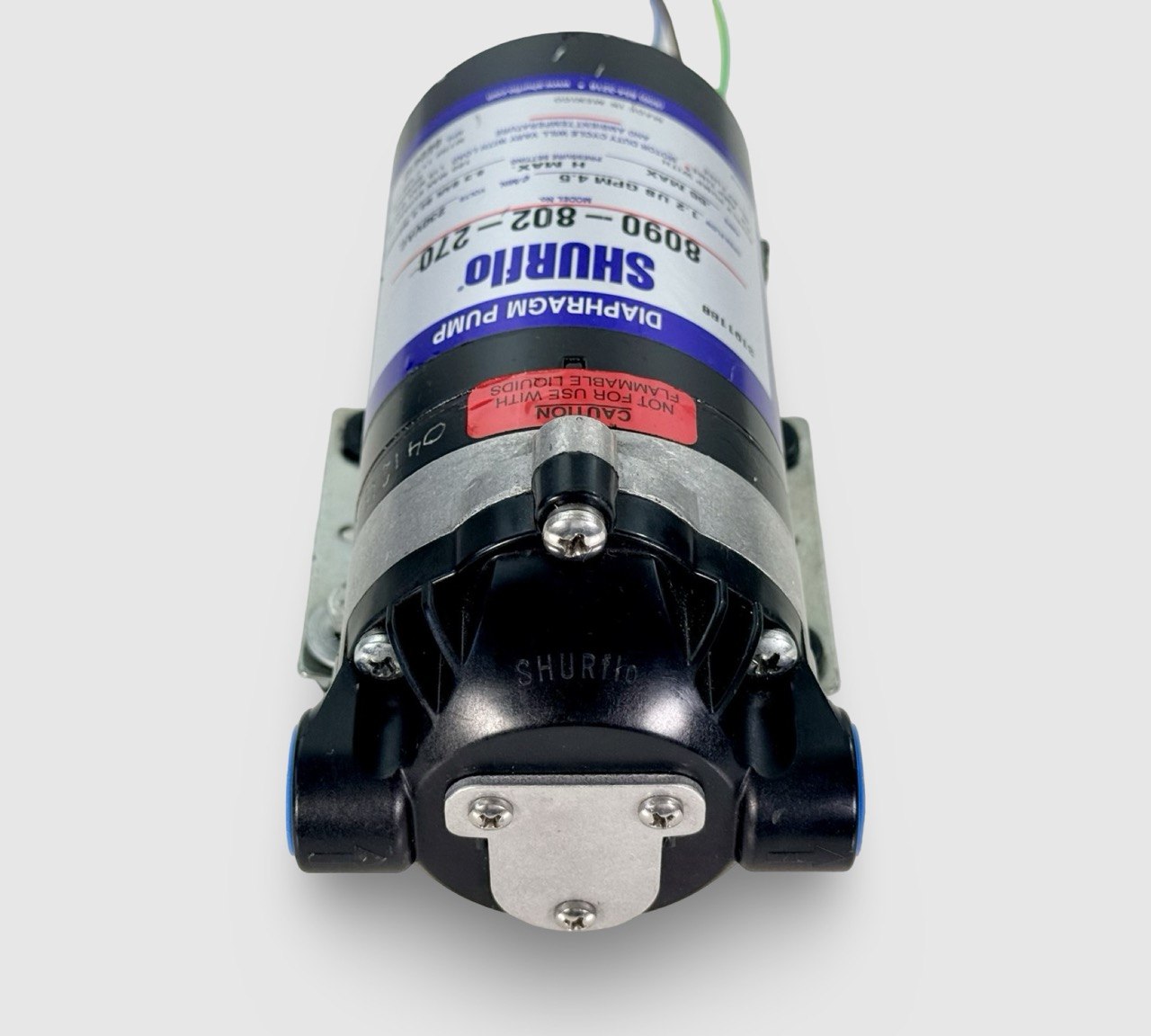

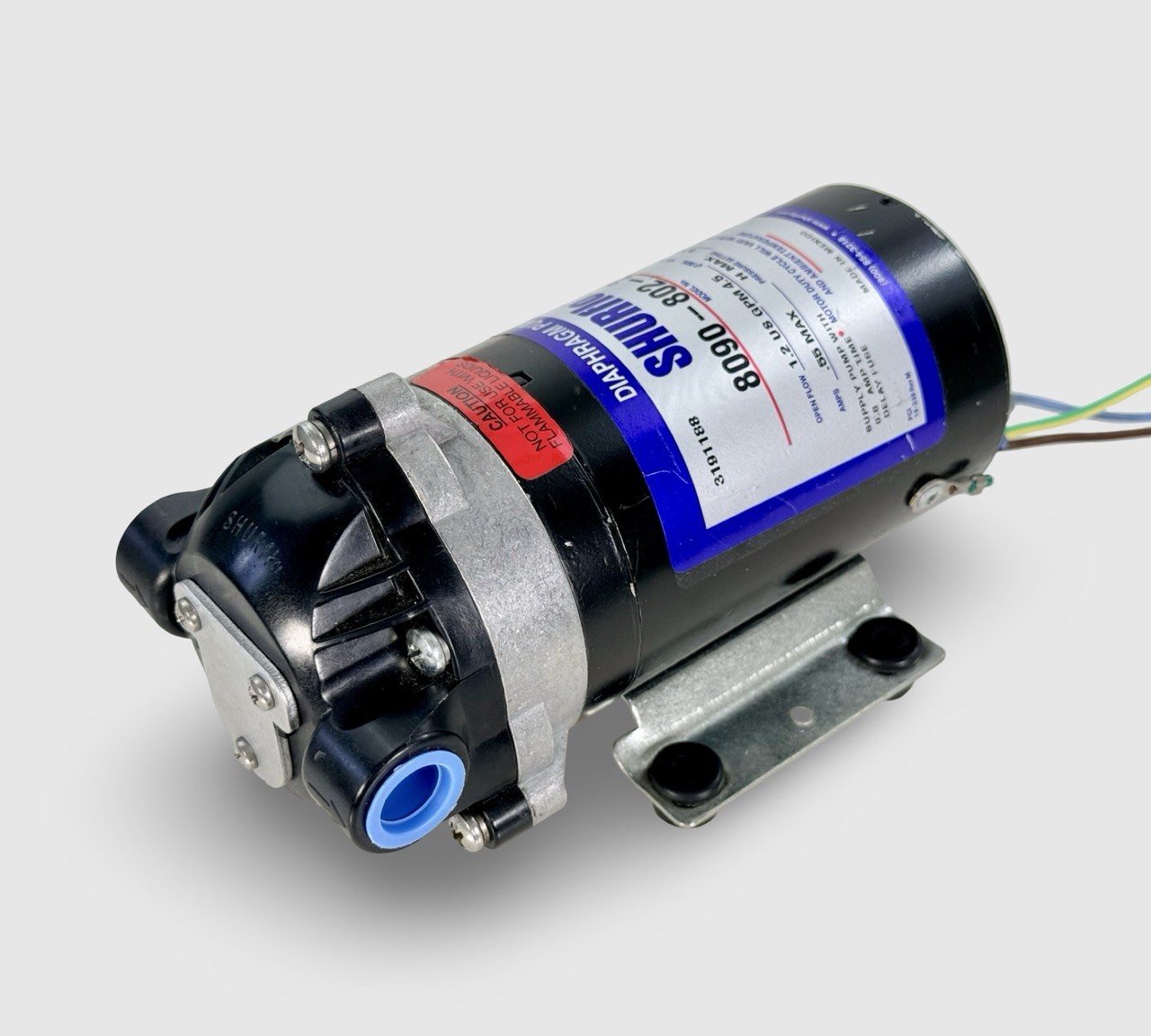

SHURflo 230V Diaphragm Pump 1.2 GPM 120 PSI – Model 8090‑802‑270 – Old Stock, Fully Tested
This SHURflo diaphragm pump is in excellent working condition and has been fully tested, performing exactly as it should. It also passes a PAT test. The pump was originally fitted into one of our Sensei carpet cleaning machines in 2012, but the machine was upgraded and modified by our workshop before it was ever used. As part of that upgrade, this pump was removed and placed on the shelf, where it has remained unused ever since.
Because it has been in storage for many years, the casing may show light scratches, storage marks or minor cosmetic blemishes. These are cosmetic only and do not affect performance, reliability or output pressure. The photos shown are of the actual item.
This 230V AC SHURflo pump delivers strong and consistent pressure output, making it ideal for carpet cleaning machines and other professional applications where dependable water flow and pressure are essential. With a maximum pressure of 120 PSI and a flow rate of 1.2 GPM (4.5 L/min), it is a powerful and reliable replacement pump for many systems.
Model and identification numbers
-
Main model number: 8090‑802‑270
-
Additional identifier: 3191188
-
Motor number: 11‑160‑10
-
Production code: PCI 19‑238 Rev M
-
Manufacture date: 24 April 2012
-
Country of manufacture: Mexico
Technical specifications
-
Open flow rate: 1.2 US GPM (4.5 L/min)
-
Maximum pressure: 120 PSI (8.3 bar)
-
Voltage: 230V AC
-
Current draw: 0.55 A max
-
Power: 115 W max
-
Frequency: 50/60 Hz
-
Bypass pressure: 120 PSI max
-
Fuse requirement: 0.8 A time delay fuse
-
Motor duty cycle: Varies with load and ambient temperature
-
Dimensions: 16.5 cm (L) × 8.5 cm (W) or 10.2 cm including base plate × 10.2 cm (H)
-
Weight: 2.1 kg
Condition – please read
This pump is old stock. It was installed briefly during machine assembly in 2012, removed before the machine was ever used, and has been stored ever since. You may see:
- Light scratches
- Small marks or scuffs
- Minor cosmetic imperfections on the casing or label
These cosmetic marks do not affect performance. The pump has been fully tested and passes a PAT test. Photos are of the actual item.
Typical applications
- Professional carpet cleaning machines
- Fluid transfer and dosing systems
- Industrial spraying and rinsing
- Water boosting where 230V AC and up to 120 PSI is required
- Replacement pump for existing SHURflo 230V systems
If you need a reliable 230V SHURflo diaphragm pump and are happy with minor cosmetic marks from long term storage, this fully tested old stock unit offers excellent value.
