PumpTec Series 356 High-Pressure Pump & 1.5 HP Motor – Approx. 1200 psi, 240 V, 18.55 kg One-Off Unit (PumpTec 80064)

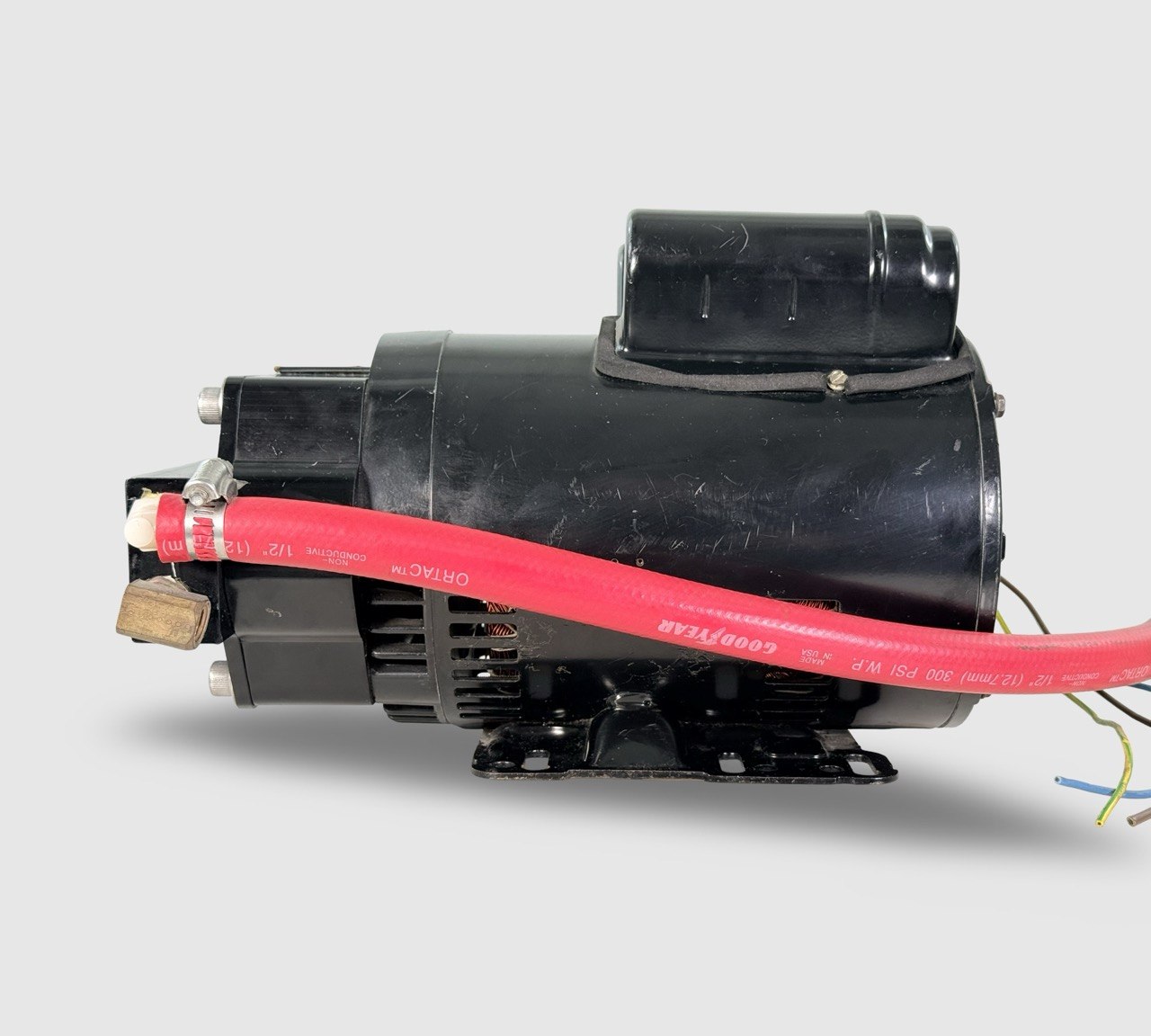

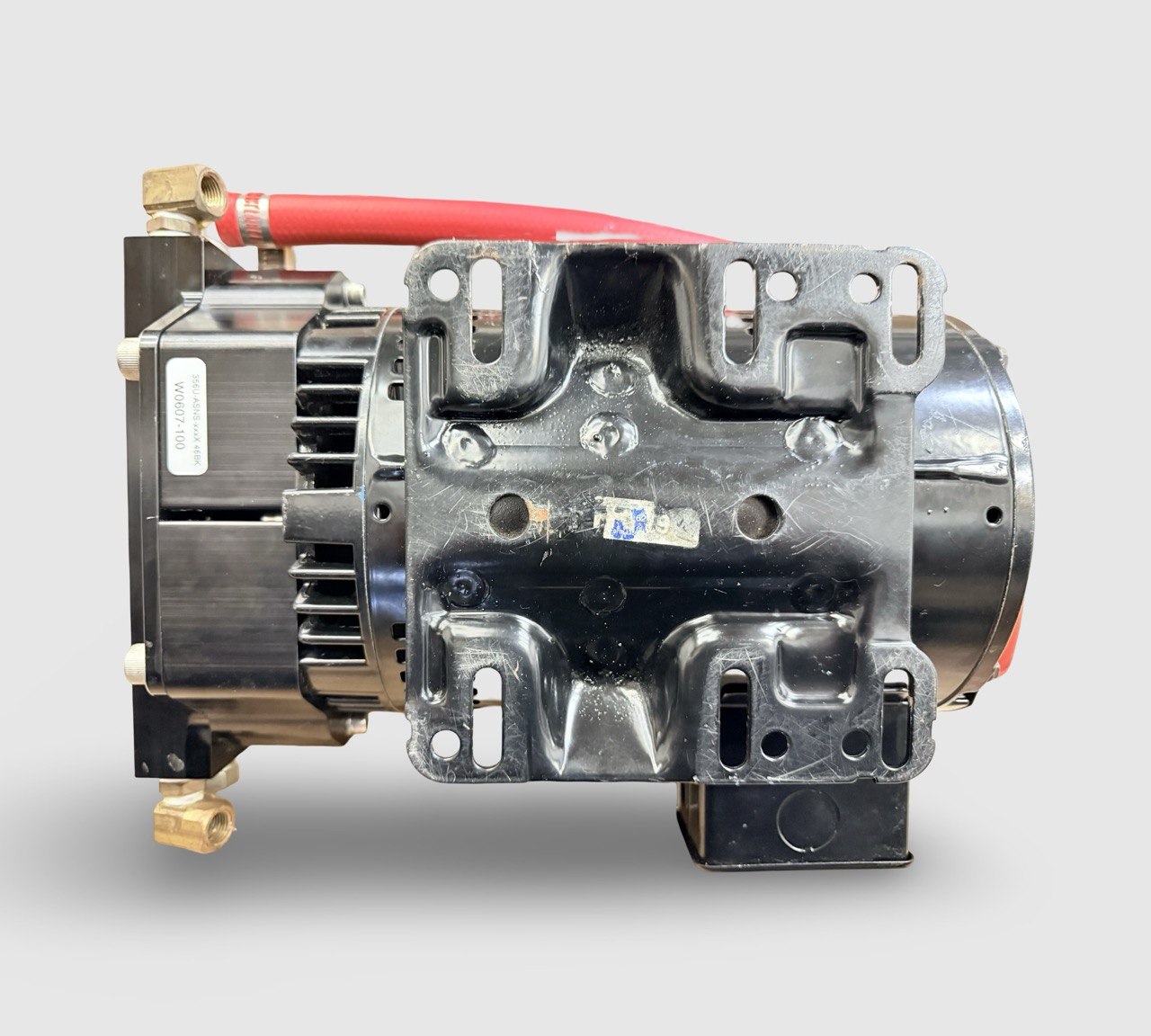

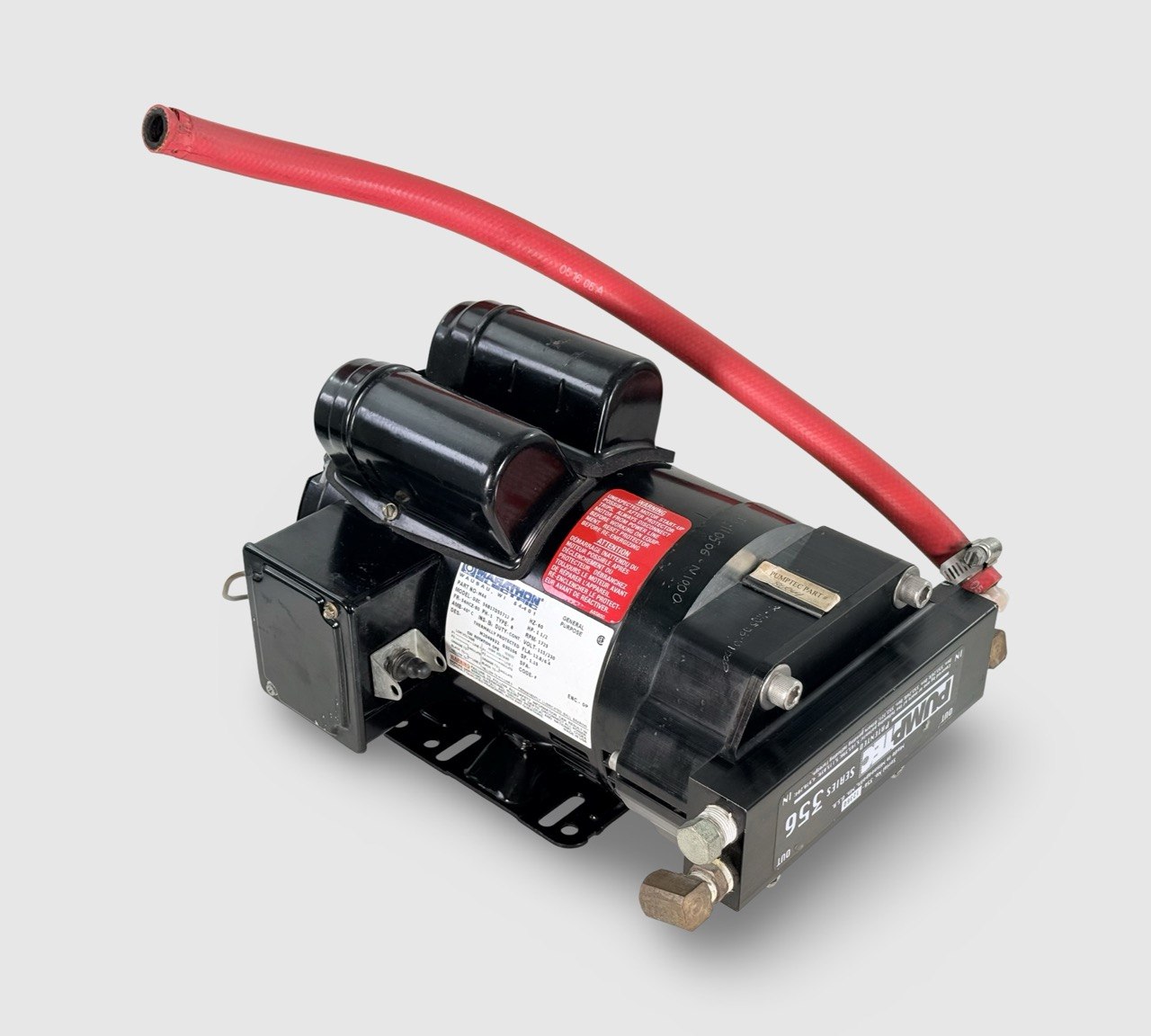

This unit is a genuine PumpTec Series 356 high-pressure plunger pump factory-coupled to a 1.5 HP Marathon Electric motor.
It was originally supplied as a 1000–1200 psi class pump set and has been run for less than 2 hours in total from new, then
stored on a shelf in our warehouse ever since. It has recently been fully tested and performs exactly as it did when it was new.

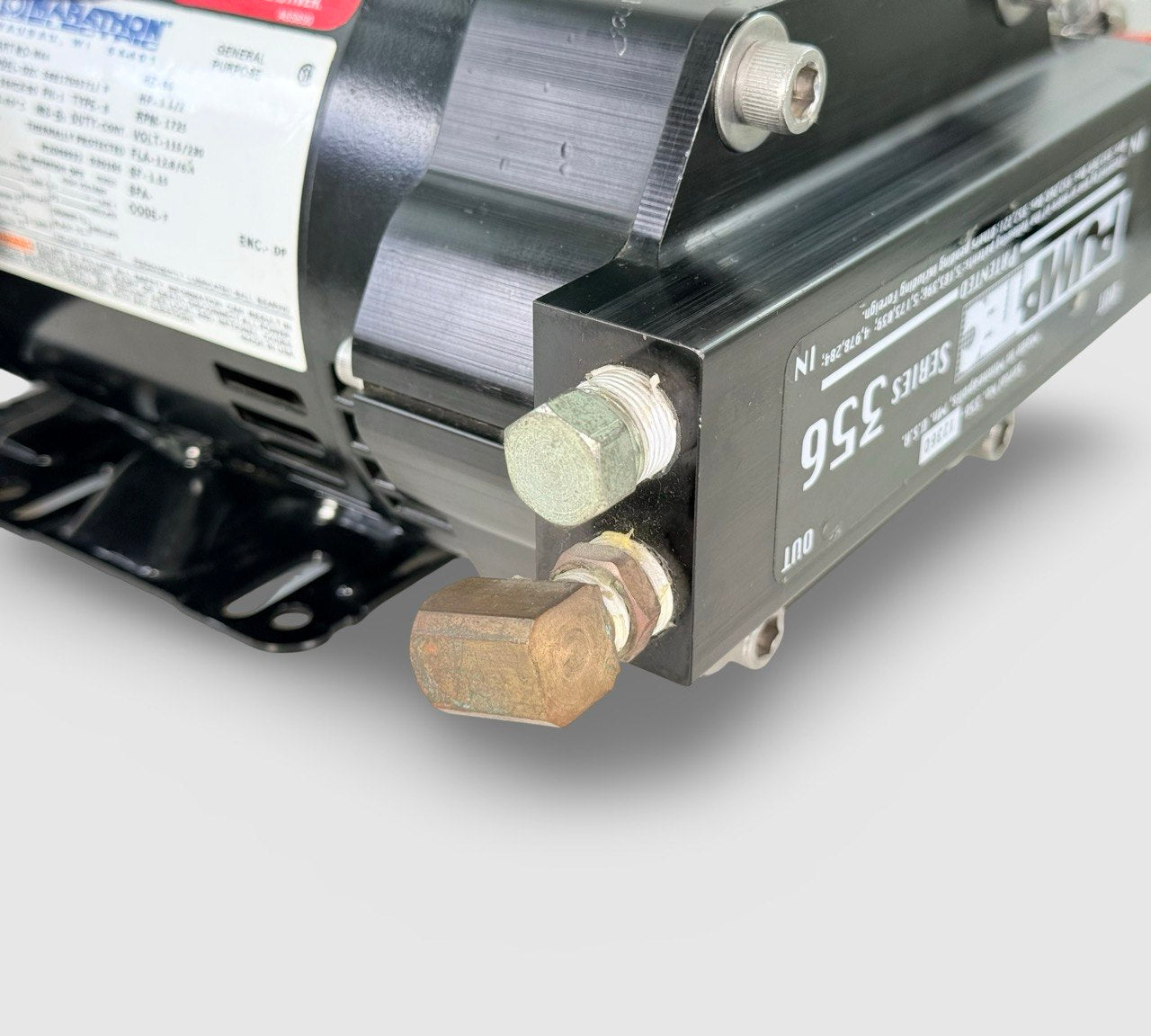

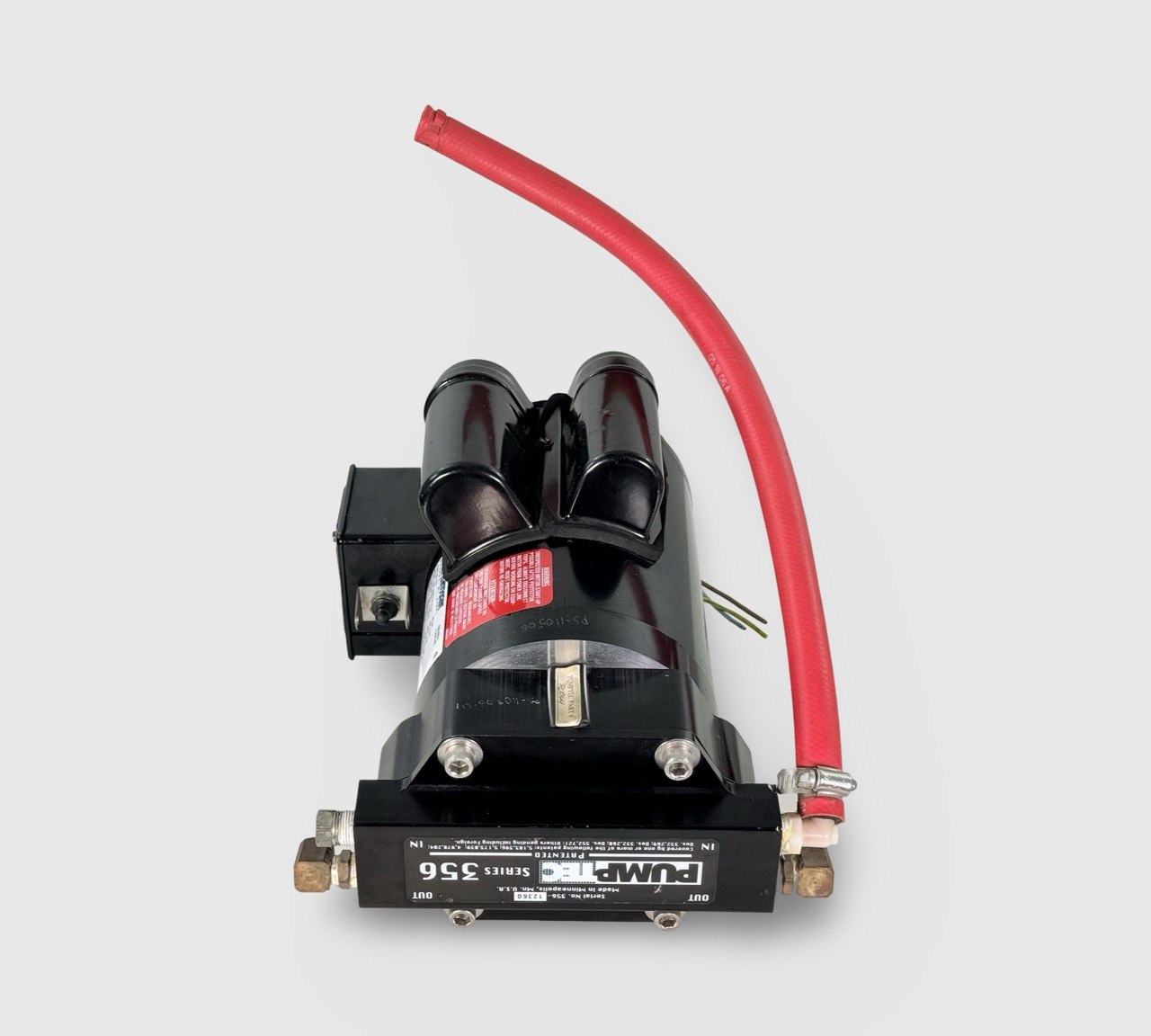

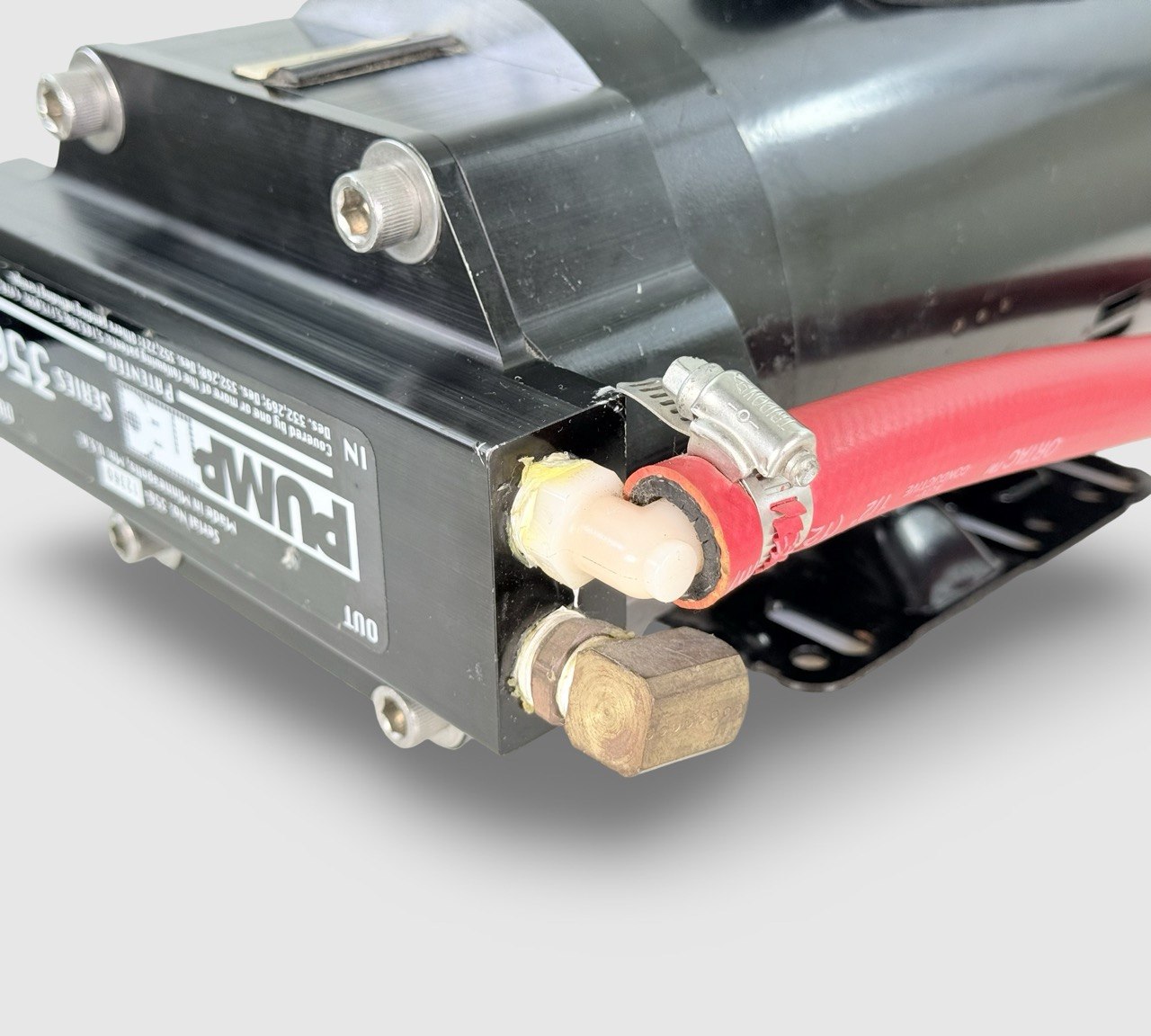

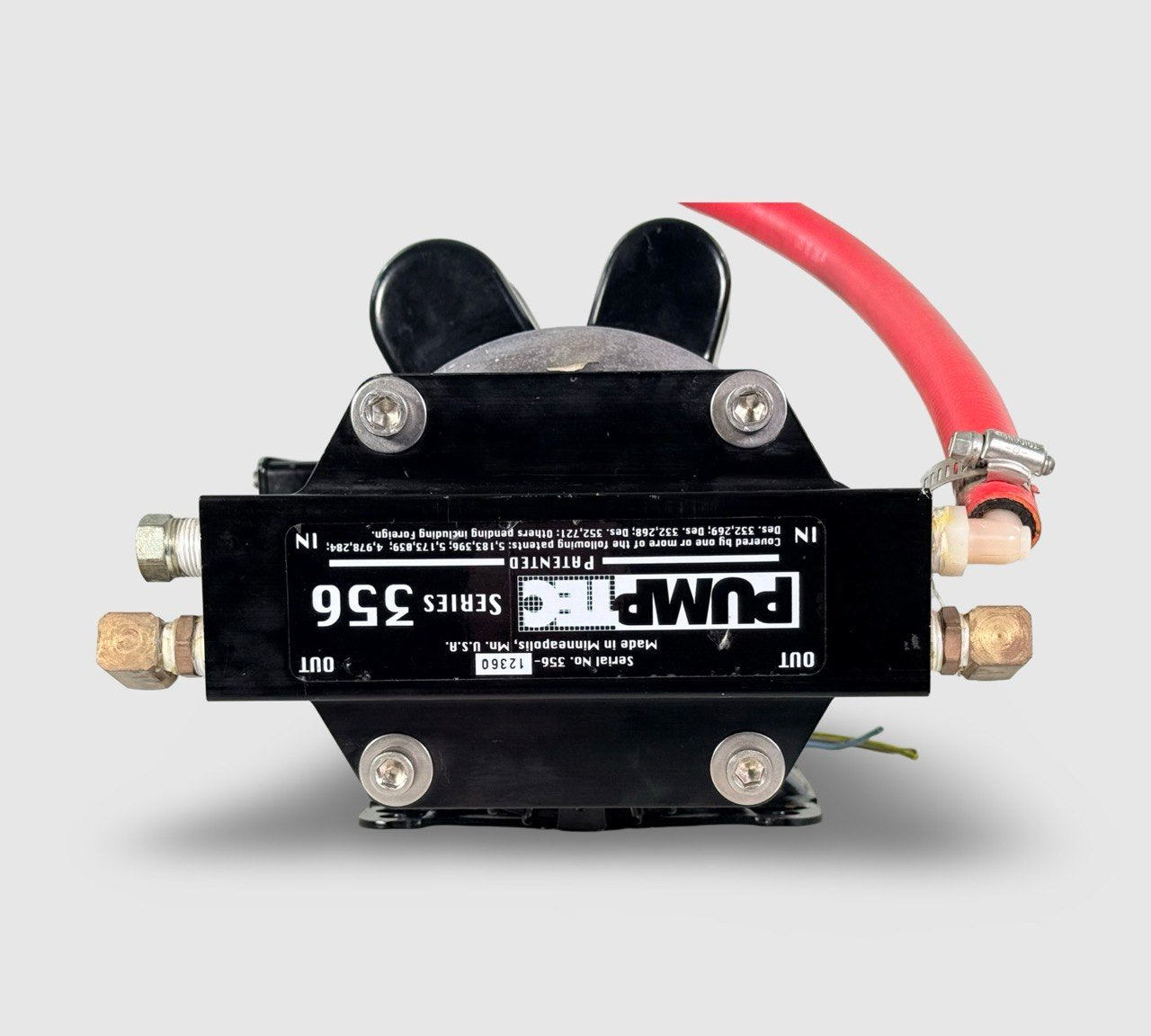

The pump head carries the original handwritten PumpTec part number 80064, confirming its build lineage within
the Series 356 family. The plunger design delivers high efficiency and strong pressure from a compact package, with open flow
up to approximately 3.7 GPM (≈ 14.0 LPM) and a maximum pressure rating up to 1200 psi, depending on the exact setup
and nozzle selection.
Suitable Uses
-
Carpet cleaning machines: Ideal for high-pressure systems requiring serious performance
-
Hard floor tools: Similar PumpTec 1200 psi units are commonly sold to provide the pressurised water needed to operate
the SX-15, SX-7 and Gekko hard floor tools
-
Important note: At 18.55 kg, this pump and motor assembly is too heavy for lightweight portable extractors,
but perfect for fixed installations, van-mounts, or engineered systems
-
Other applications: pressure cleaning rigs, industrial spraying, engineering projects, custom machinery builds
Technical Specification
-

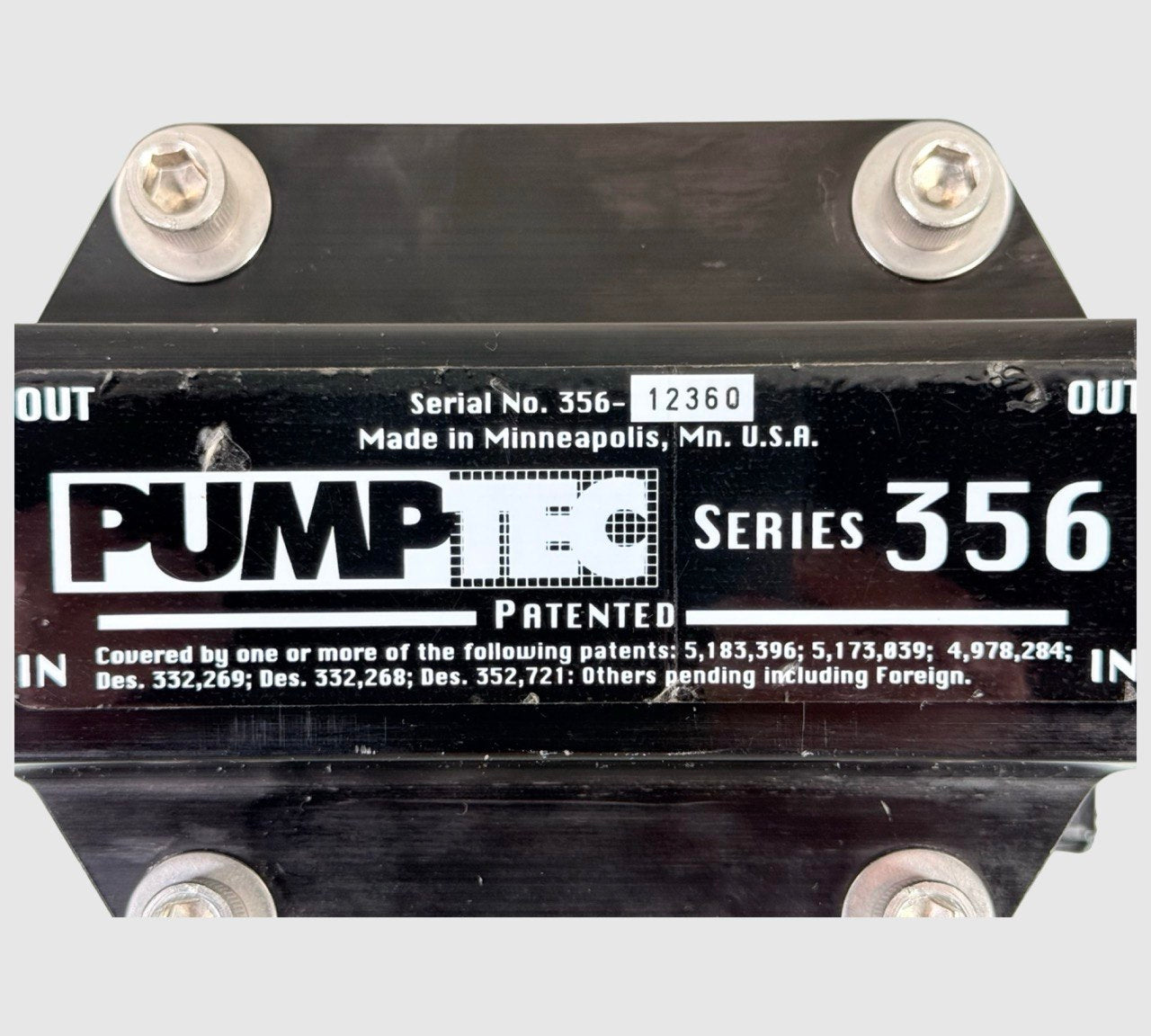

Pump model: PumpTec / PumpAir Series 356 (PumpTec part 80064)
-
Maximum pressure: up to 1200 psi
-
Open flow: up to 3.7 GPM (≈ 14.0 LPM)
-
Typical working flow: 2–3 GPM (≈ 7.5–11 LPM), depending on nozzle and setup
-
Ports: 3/8" FNPT inlet and outlet
-

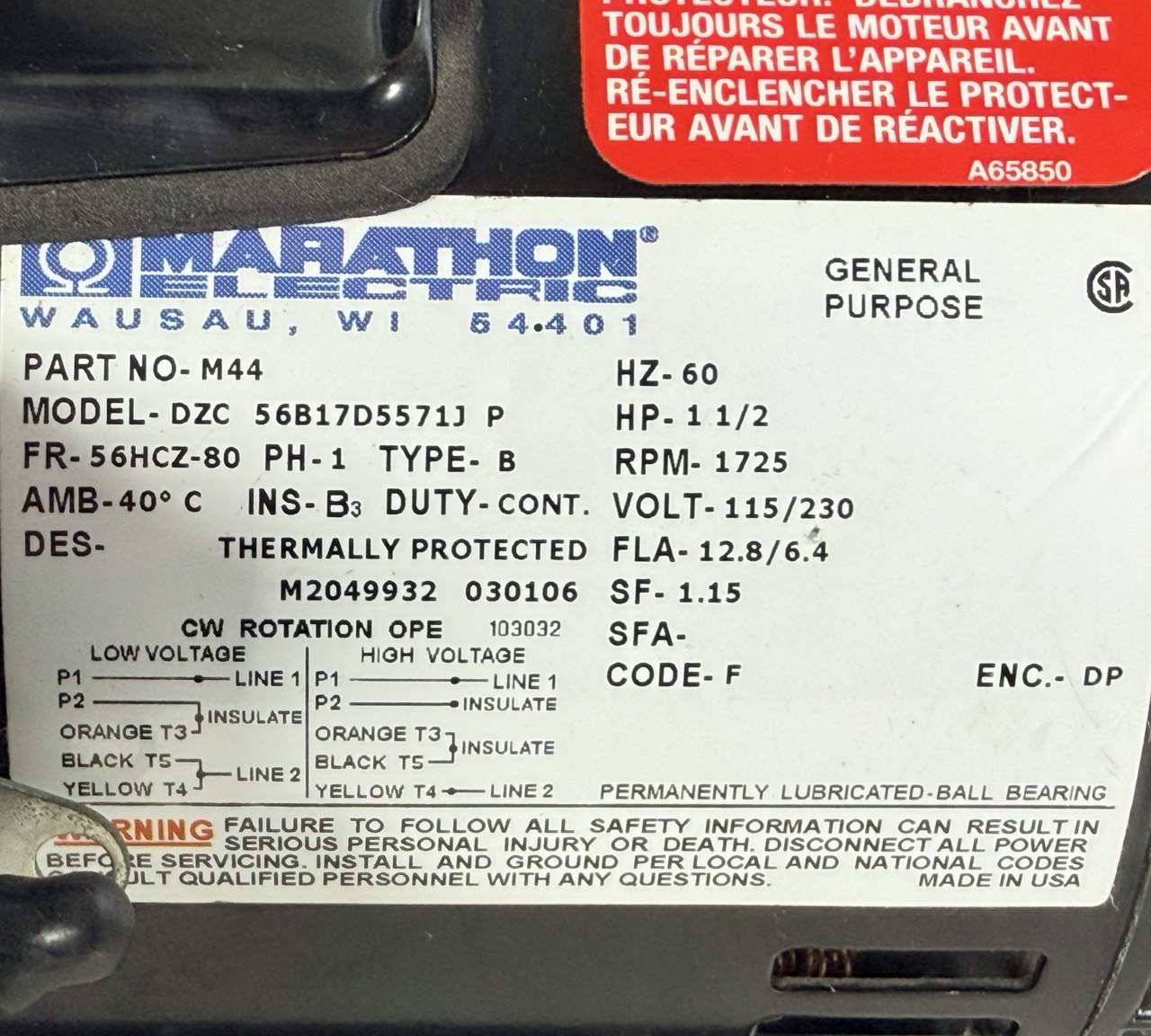

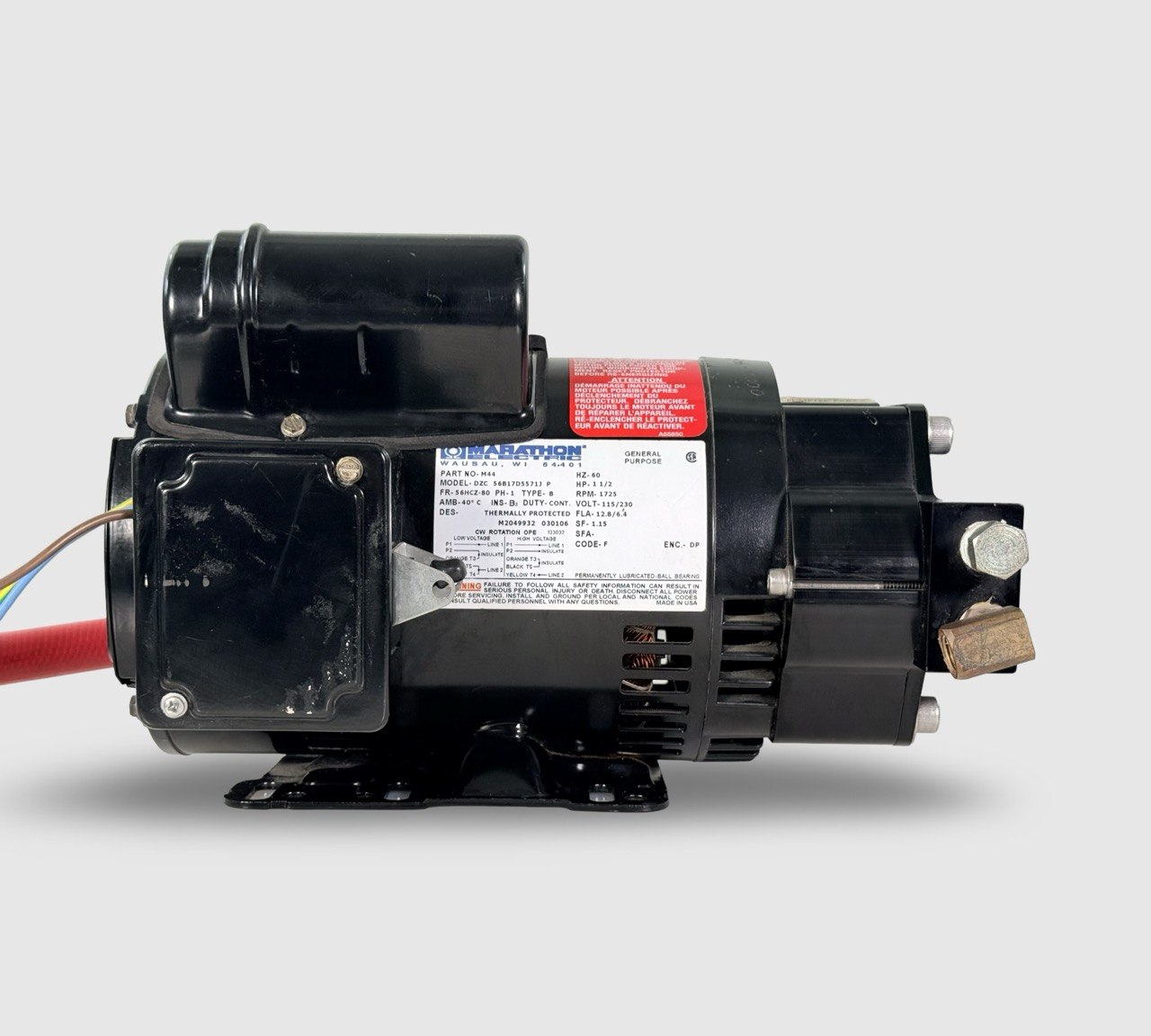

Motor brand: Marathon Electric
-
Motor power: 1.5 HP, single-phase
-

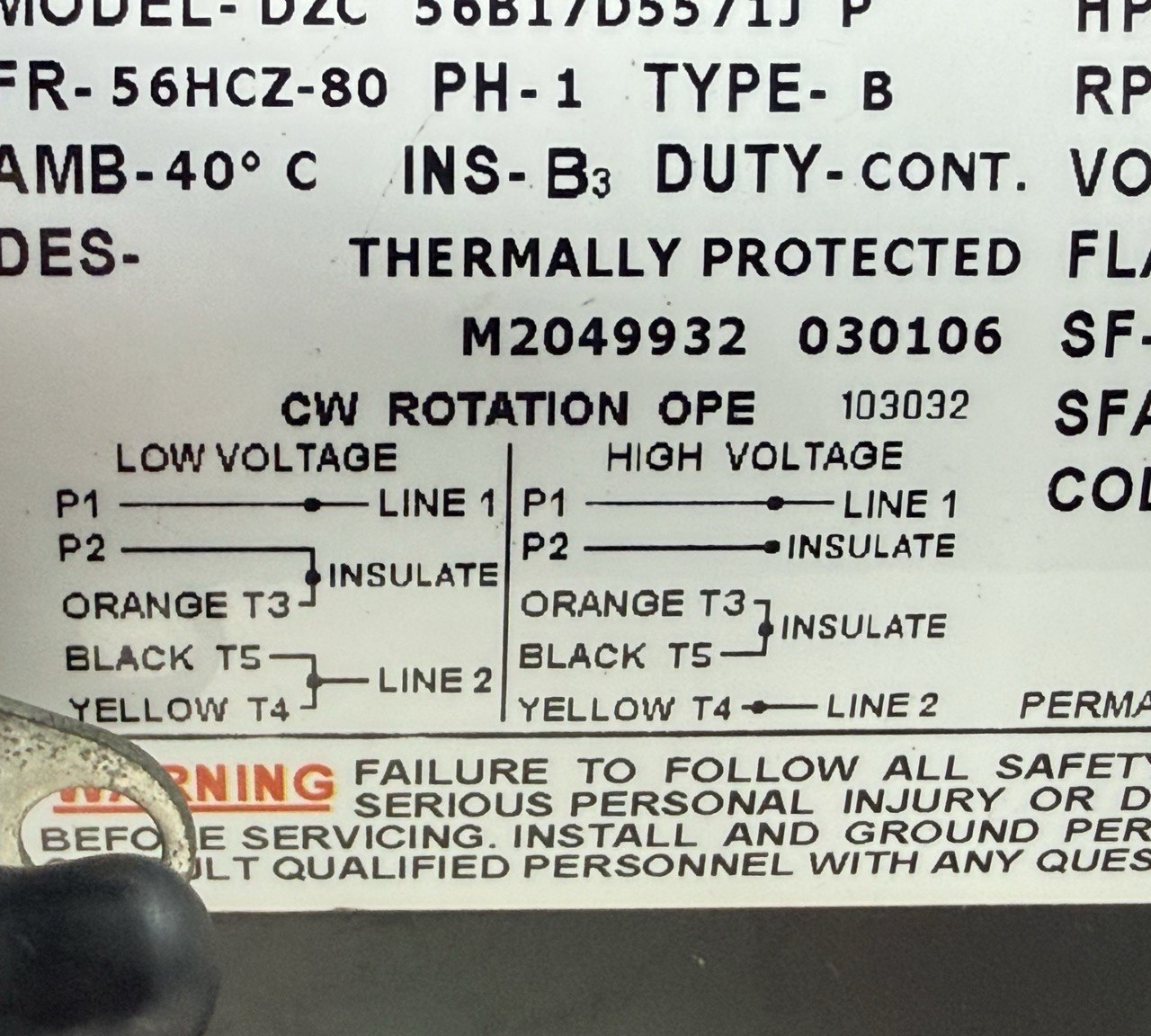

Voltage: 115/230 V (suitable for UK 230–240 V when wired to the 230 V tap)
-
Frequency: 60 Hz nameplate (slightly lower rpm on 50 Hz)
-
Full load current: 12.8 / 6.4 A (115 / 230 V)
-
Speed: 1725 rpm (nameplate)
-

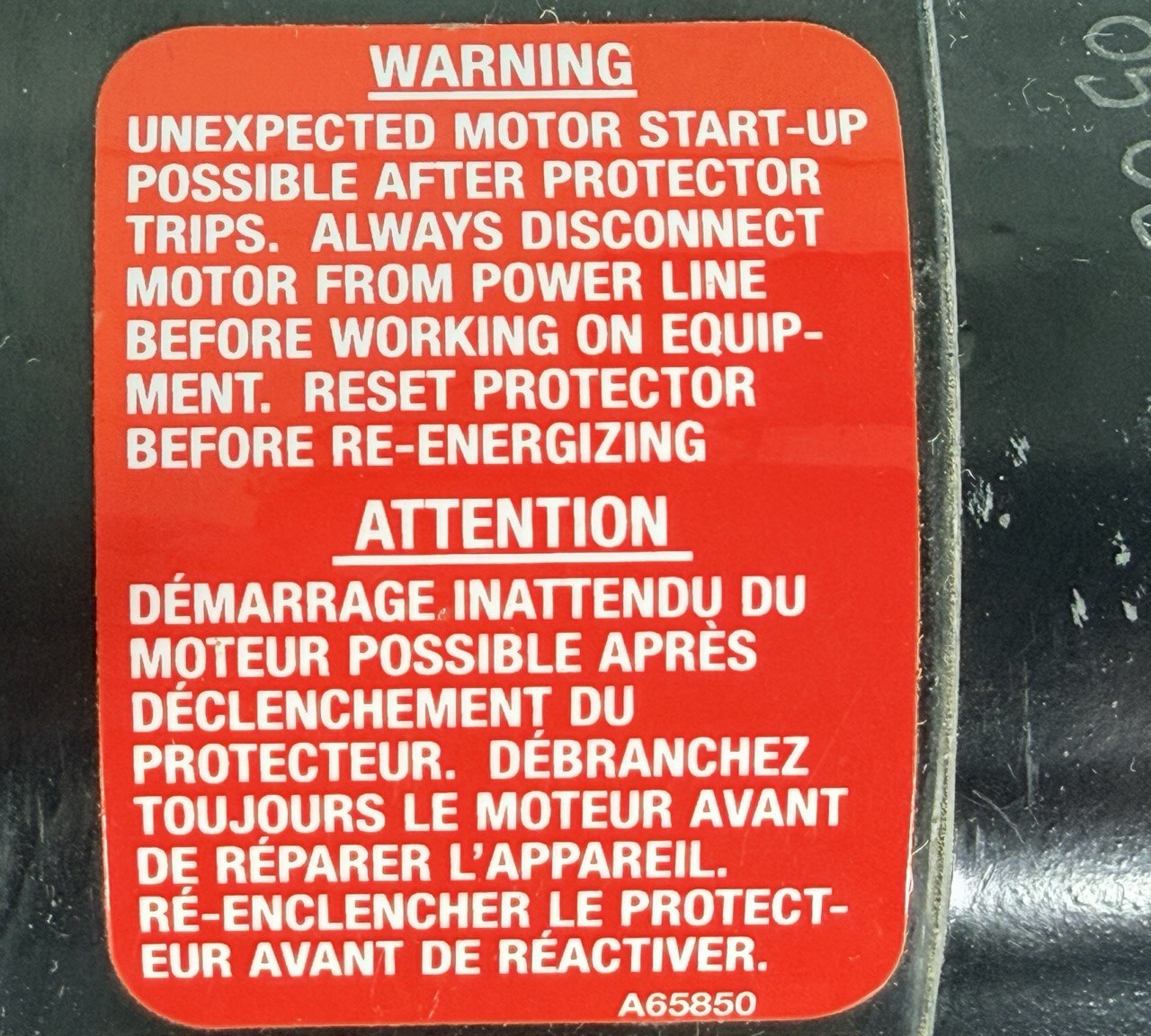

Duty: continuous, thermally protected
-
Weight: 18.55 kg
-
Dimensions: 32.5 cm (L) × 27 cm (W, including fittings) × 22 cm (H)
Mounting & Vibration Protection
Due to the weight and power of this pump and motor assembly, we strongly recommend mounting it on anti-vibration mounts to
help protect the pump, motor and surrounding structure from damage caused by vibration.
We advise fitting this unit on at least six of our
Ashbys Anti Vibration Mounts PC7156. These mounts significantly reduce transmitted vibration and help prolong the life of
the pump, motor and fixings.
Condition & History
- Purchased new approximately 20 years ago
- Run for under 2 hours total from new
- Stored on a warehouse shelf ever since
- Recently fully tested and performs as it did when new
-
One-off unit – not a regular stock item and unlikely to be repeated
This is an ideal pump and motor set for an engineer or cleaner who wants a compact, serious-pressure unit for a custom
project, a high-pressure carpet cleaning machine, or a specialist industrial application, without paying new PumpTec prices.
