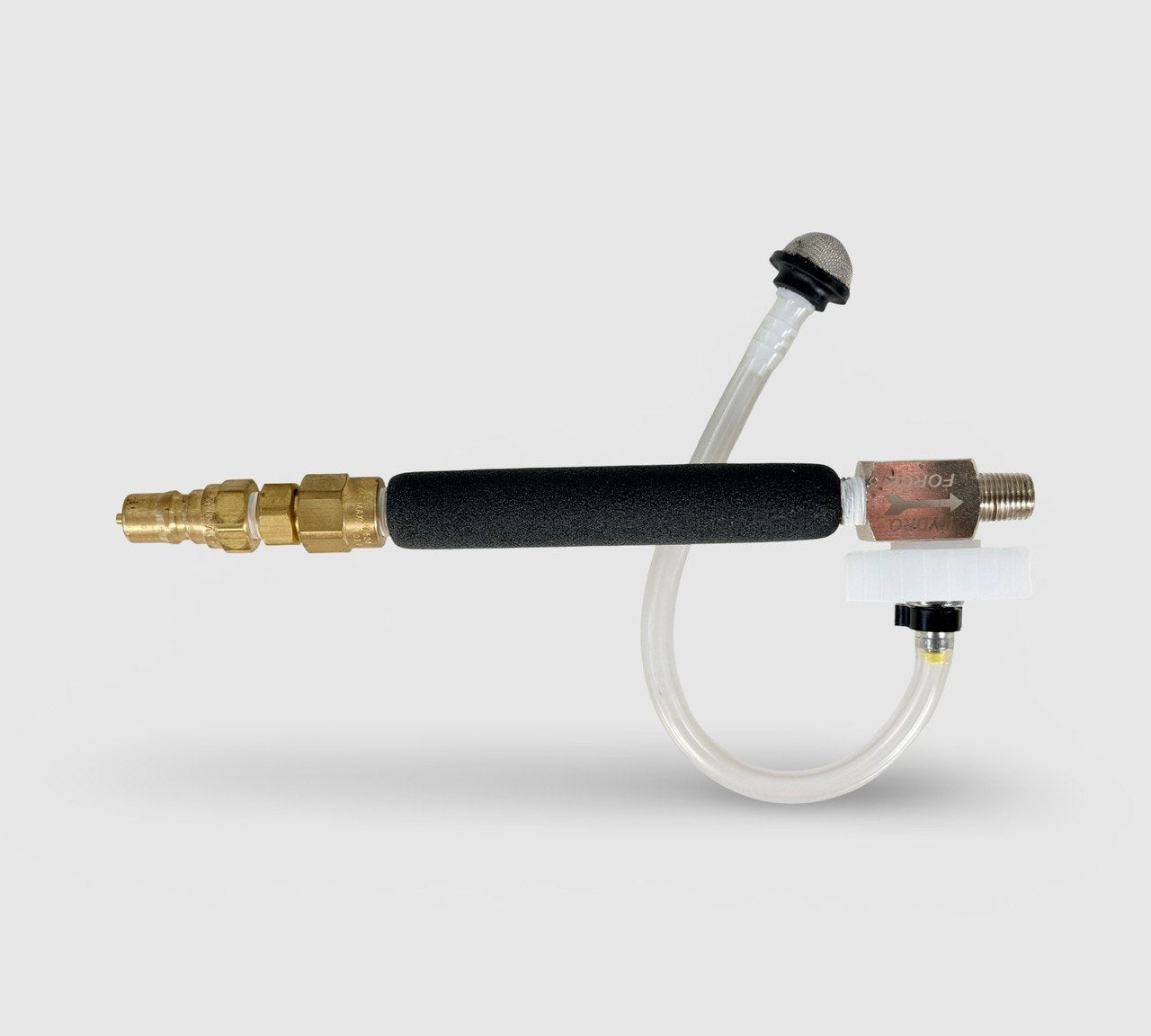

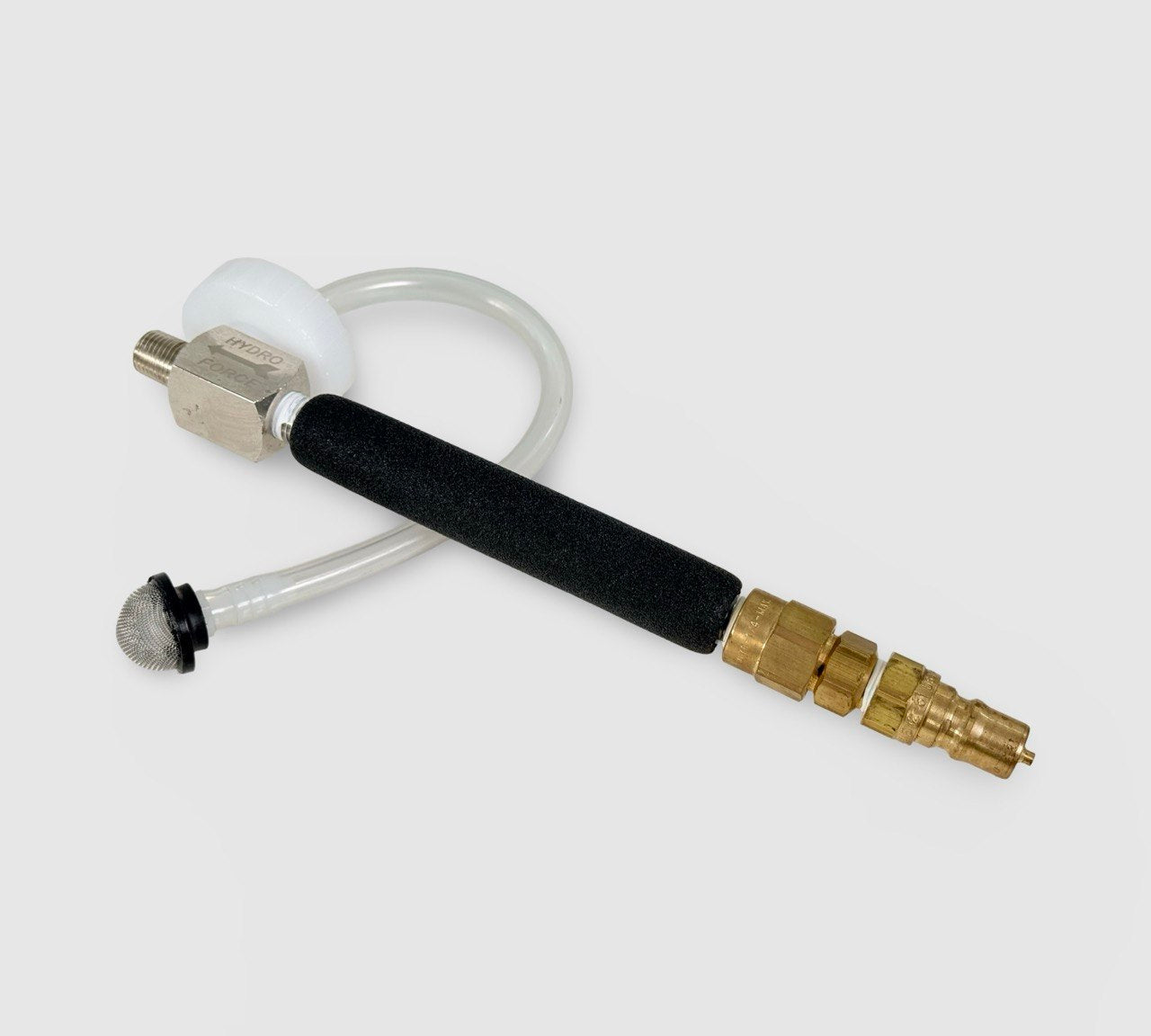

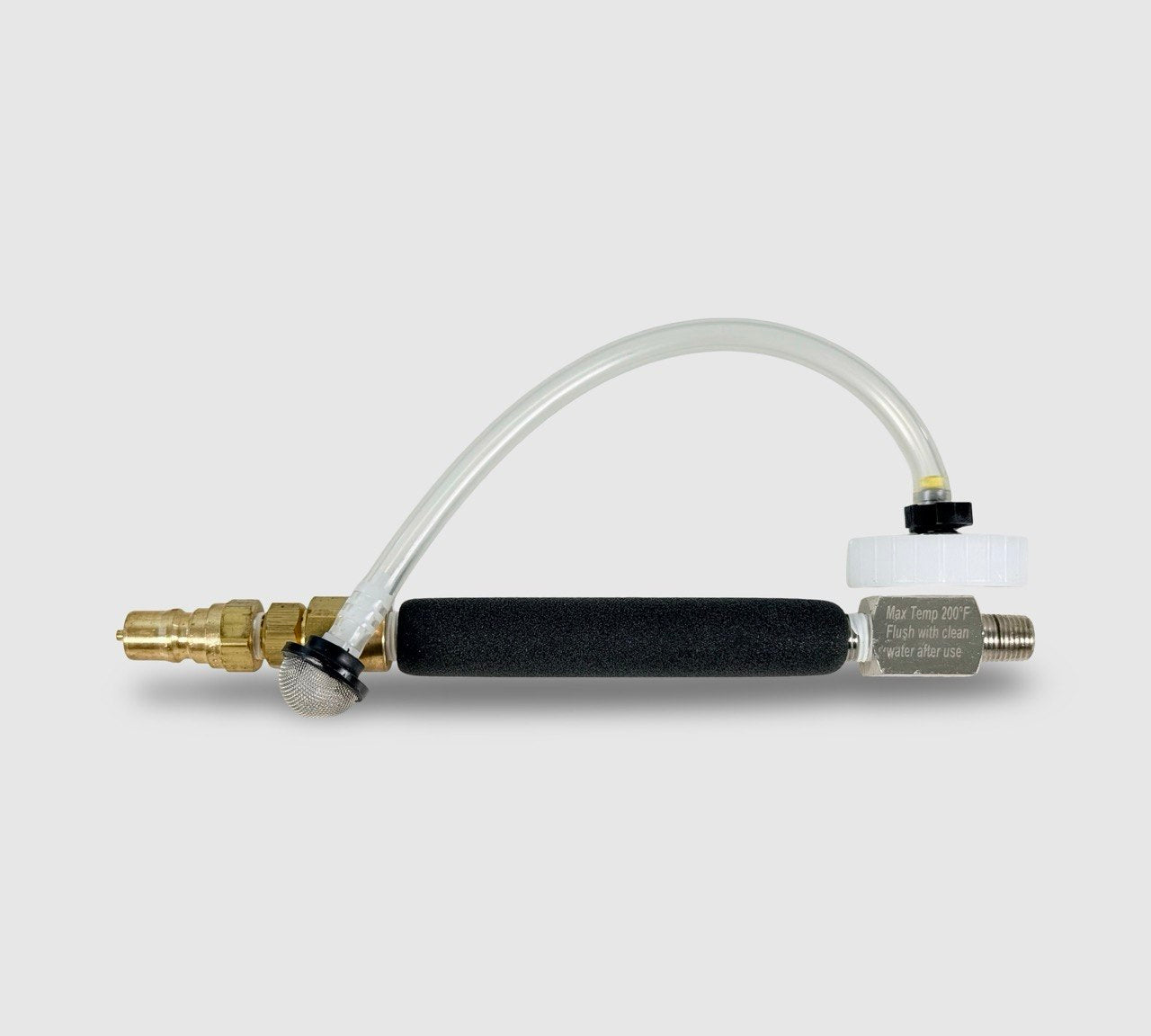

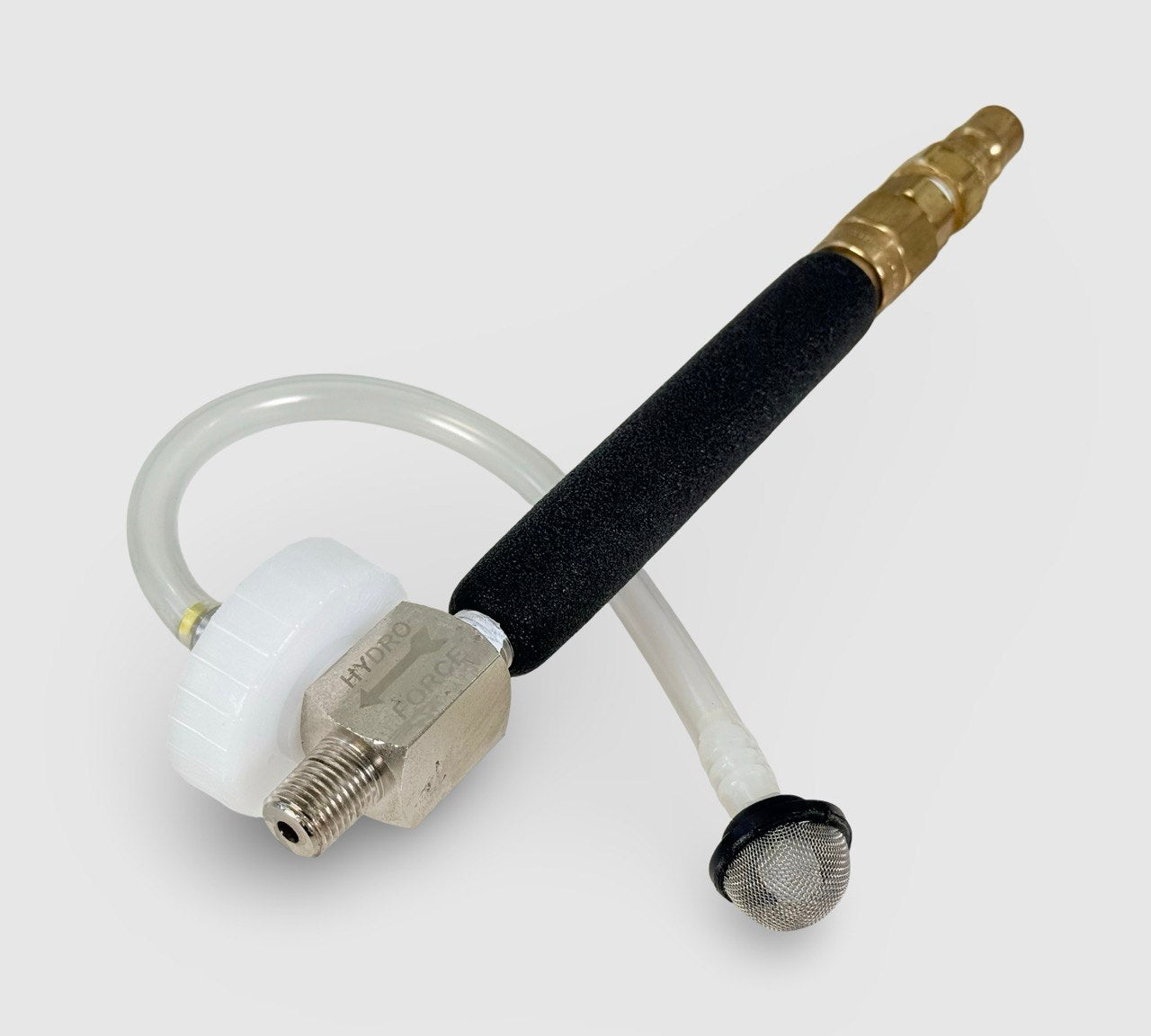

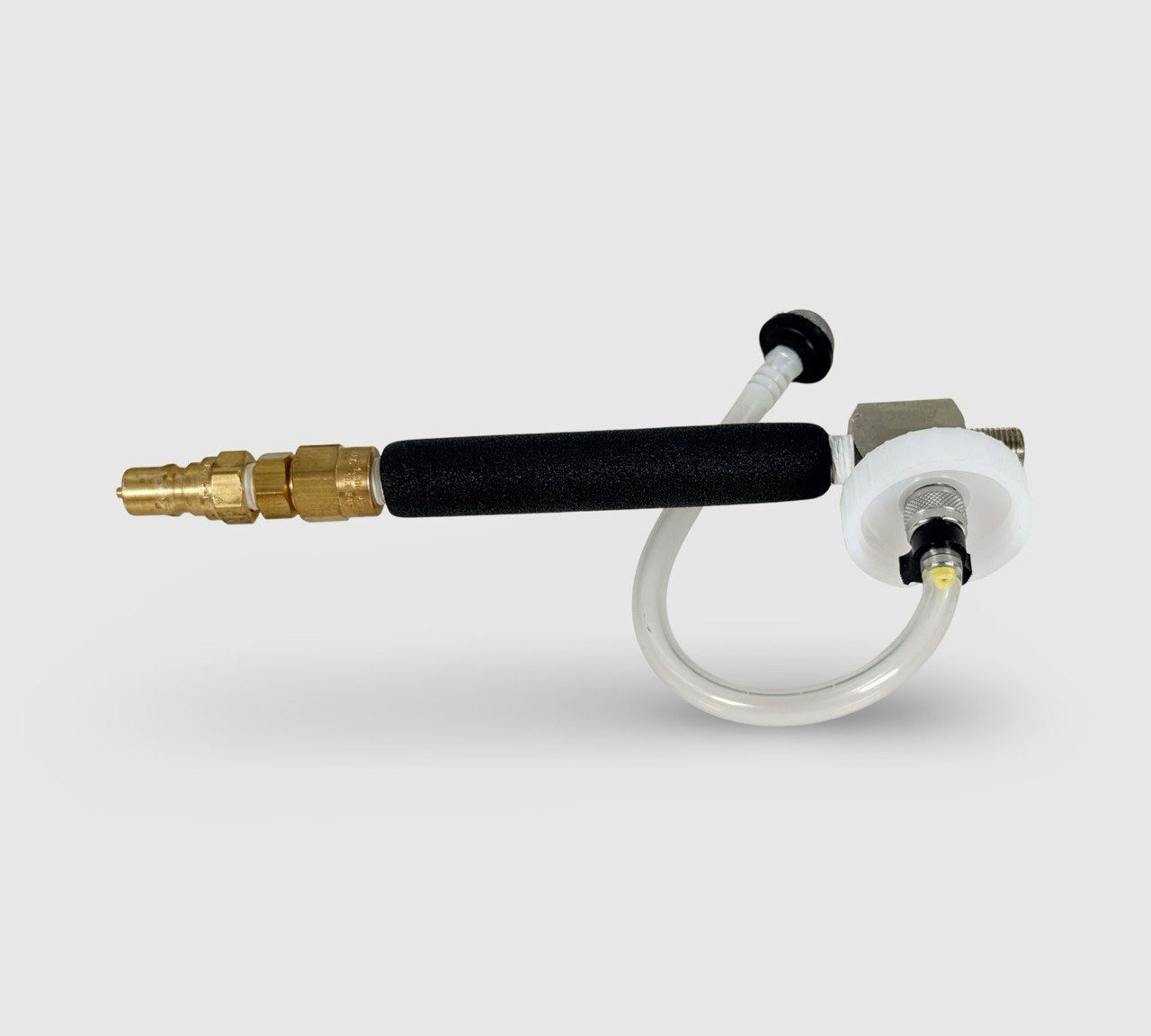

Complete Parts Kit (A–T) for Hydro-Force Revolution Inline Injection Sprayer – AS08R
This complete A–T parts kit contains every major service component used on the Hydro-Force Revolution Inline Injection Sprayer, model AS08R. Whether you are carrying out routine maintenance, restoring performance or performing a full rebuild, this kit provides all the genuine Hydro-Force components required for long-term reliability.
The set includes the full strainer assembly, injector valve, O-rings, tubing, fittings, cap components and the insulated handle. All parts are original Hydro-Force items, ensuring perfect fitment and dependable operation.
Included Components (A–T)
-
A – AH102B: 1/4” Male Quick Connect
-
B – NA0802: Strainer Body
-
C – NA0803: Strainer
-
D – NA0804: Strainer Adapter
-
E – NA0806A: Insulated Handle
-
F – NA0807: Backup Washer
-
G – NA0808: Water Nozzle with O-Ring
-
H – NA0809A: Injector Valve Complete
-
I – NA0837: Viton O-Ring
-
J – NA0810: Check Valve Spring
-
K – NA0812: Formed Bottle Cap
-
L – NA083: Cap Liner
-
M – NA0811: Steel Ball
-
N – NA0813: Spacer
-
O – NA0814: Viton O-Ring
-
P – NA0815: Suction Nut
-
Q – NA0818: Clamp HF Draw Tube
-
R – NA0817: Tubing
-
S – NA0839: 1/4” x 1/8” Hose Barb
-
T – NA0840: Acorn Strainer
Key Features
- Complete A–T rebuild kit for Hydro-Force Revolution AS08R sprayers
- Includes injector valve, strainer assembly, O-rings, fittings and tubing
- Restores performance, flow and reliability
- All genuine Hydro-Force components
- Ideal for servicing, repairs or full sprayer refurbishment
Compatibility
- Hydro-Force Revolution Inline Injection Sprayer – AS08R
- Hydro-Force standard inline sprayers using the same component set
Official Hydro-Force Revolution Parts List (PDF)
Download Hydro-Force Revolution Parts List (opens in new window)
For individual replacement parts, see our full Hydro-Force Revolution spares collection.
