Valve Repair Kit (up to 1250 psi) – for PC6032 Ashbys Single Mount K Valve
This genuine high pressure Valve Repair Kit is designed specifically for the Ashbys Single Mount K Valve PC6032 (1250 psi). The valve is easily identified by the K embossed on the side and is the same valve historically known as the Kingston Valve.
The PC6032 K Valve is a high pressure, high temperature forged brass valve used across many professional carpet and upholstery cleaning wands and hand tools. Over time, internal wear can reduce trigger responsiveness or cause minor leaks. This repair kit replaces the critical wear items, restoring smooth trigger action and reliable sealing at pressures up to 1250 psi.
If your valve has a P embossed instead of a K, you require the P Valve shown here: Ashbys Single Mount P Valve.

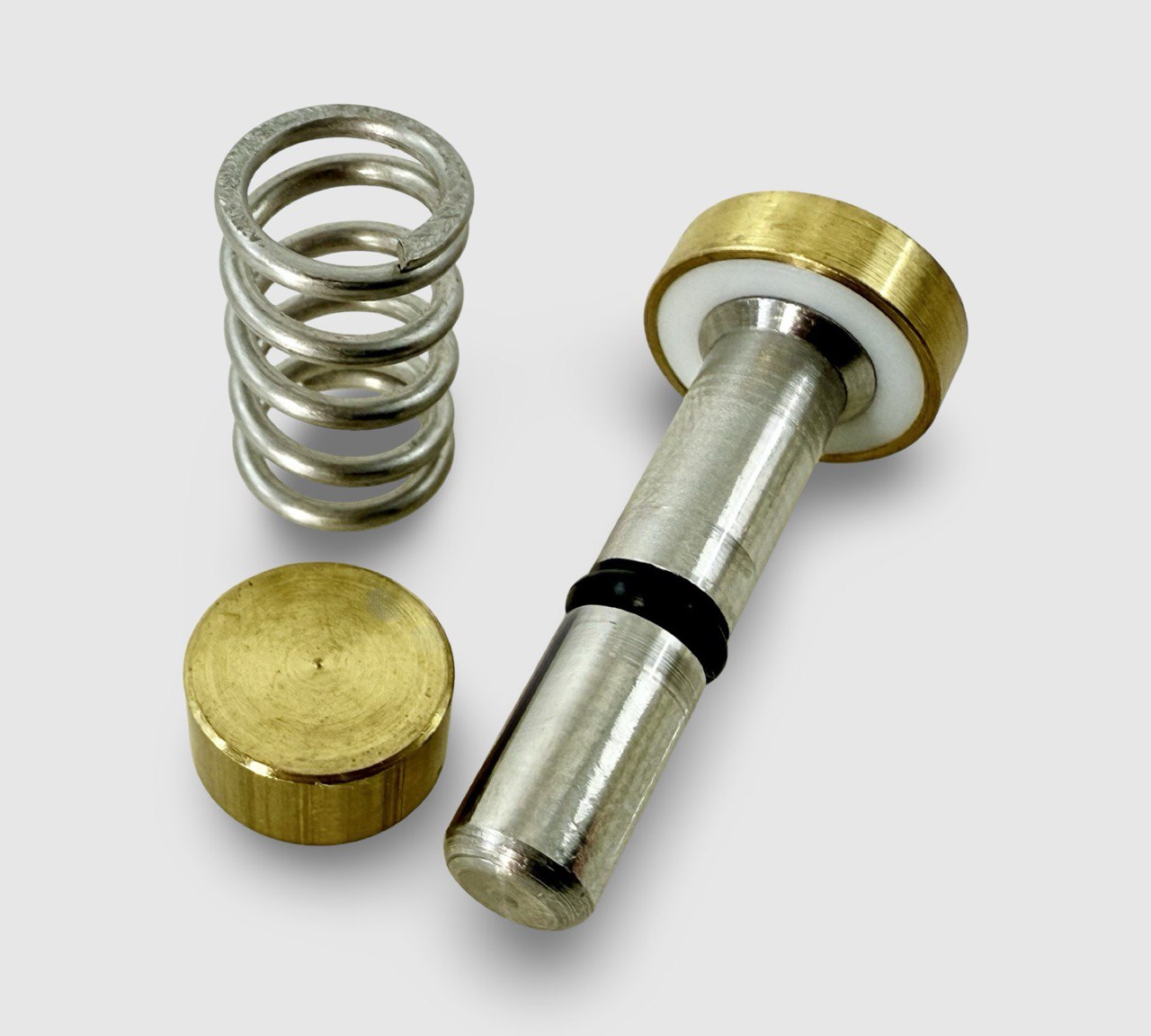

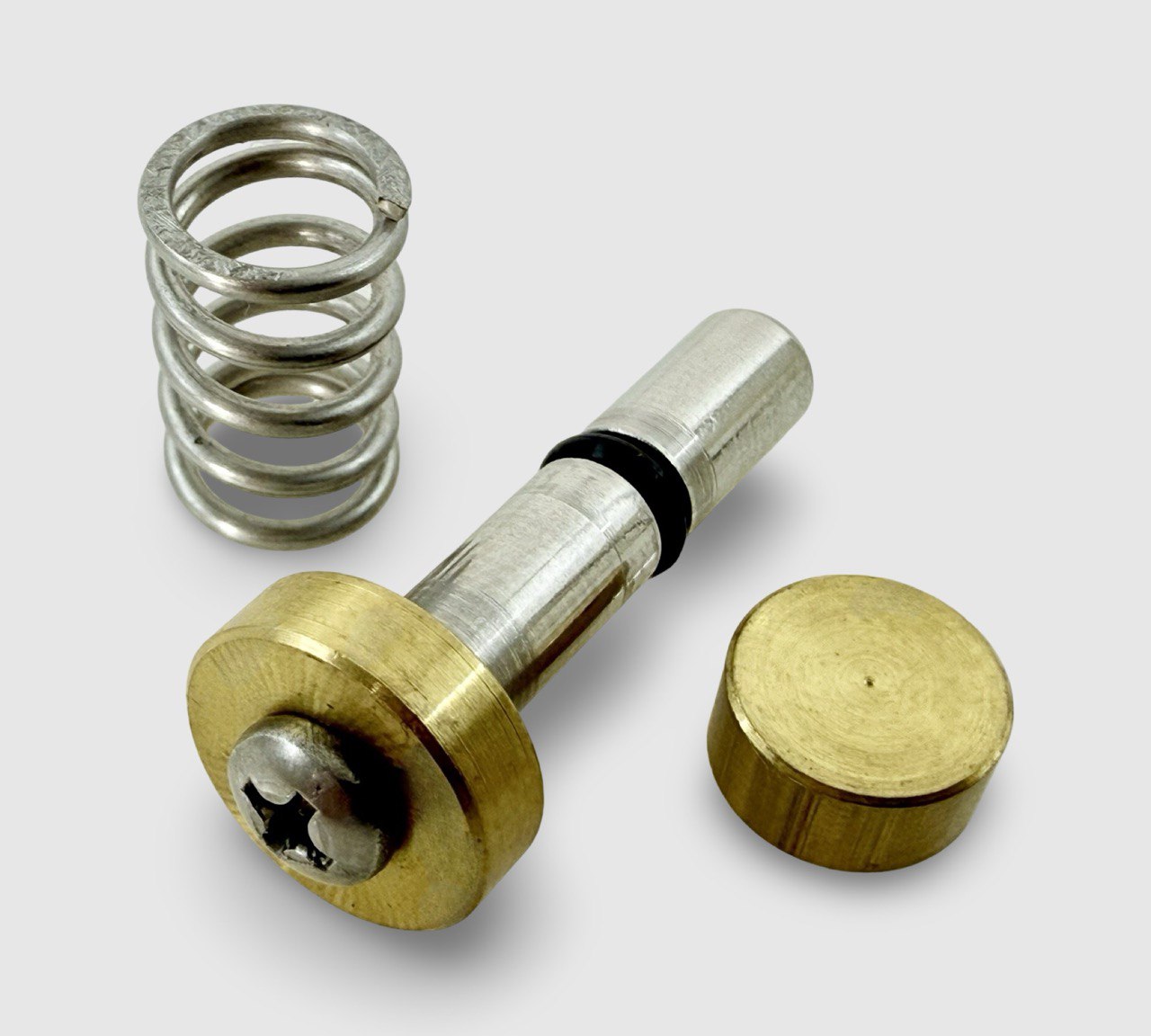

Kit Contents
- High pressure coil spring
- Brass spacer
- Plunger actuator with white seal seat
Key Benefits
| Restores high pressure sealing |
Replaces the internal components responsible for maintaining a reliable seal at up to 1250 psi. |
| Smooth trigger action |
New actuator and spring improve responsiveness and reduce hand fatigue. |
| High temperature compatible |
All components are suitable for the K Valve’s high temperature operating range. |
| OEM matched parts |
Each component is designed specifically for the PC6032 Single Mount K Valve. |
| Cost effective maintenance |
Refreshes valve performance without replacing the complete valve assembly. |
Choosing the Right Repair Kit
If your machine runs at 250 psi or below, the standard pressure repair kit is the correct and more cost effective choice. This includes popular machines such as:
For these machines, use the 250 psi repair kit:
FAQs
Is this the correct repair kit for my valve
This kit is for the Ashbys Single Mount K Valve PC6032. If your valve has a P embossed, you need the P Valve instead.
Which repair kit should I choose
Use the 250 psi kit if your machine runs at 250 psi or below. Use this 1250 psi kit for high pressure systems.
What problems does this kit fix
It resolves reduced trigger responsiveness, leaking caused by internal wear and high pressure sealing issues.
Do I need to replace the whole valve
Not usually. If the valve body is undamaged, this kit restores full performance.
Is the PC6032 valve high pressure
Yes. It is rated up to 1250 psi and suitable for high temperature use.
What materials are used in the valve
The valve uses a forged brass body, high pressure spring, brass spacer and a plunger actuator with a white seal seat.
This high pressure repair kit provides a simple, reliable way to restore the PC6032 K Valve to smooth, leak free performance, keeping your wand or tool working at its best.
